Segmented Fittings (Fabricated Fittings)
While most of the project can be done with straight HDPE pipe and standard fittings, it is also important to have quality-made custom-fabricated items. Fabricated fitting is meant to solve installation situations where common fitting fails, meets more complex and cost-efficient pipeline designs.

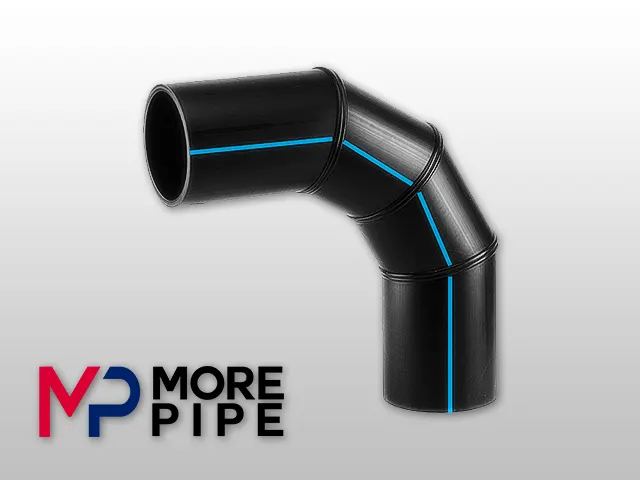

HDPE butt fusion 90° Elbow
- SDR-7.3 from 1 1/4″ up to 18″
- SDR-9 from 1 1/4″ up to 20″
- SDR-11 from 1 1/4″ up to 24″
- SDR-13.3 from 1 1/2″ up to 24″
- SDR-17 from 2″ up to 18″

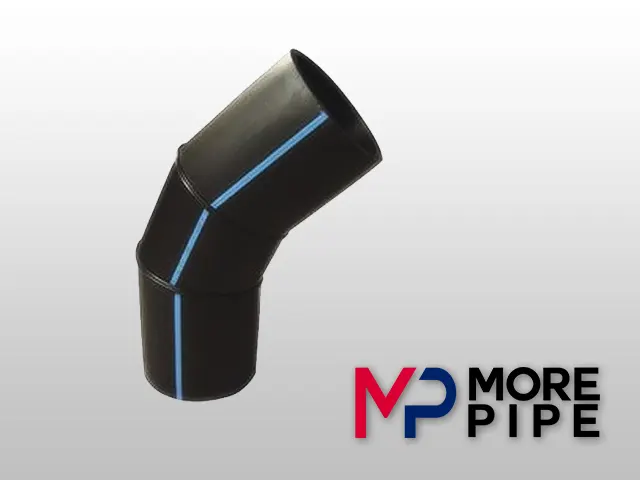

HDPE butt fusion 45° Elbow
- SDR-7.3 from 1 1/4″ up to 18″
- SDR-9 from 1 1/4″ up to 20″
- SDR-11 from 1 1/4″ up to 24″
- SDR-13.3 from 1 1/2″ up to 24″
- SDR-17 from 2″ up to 18″

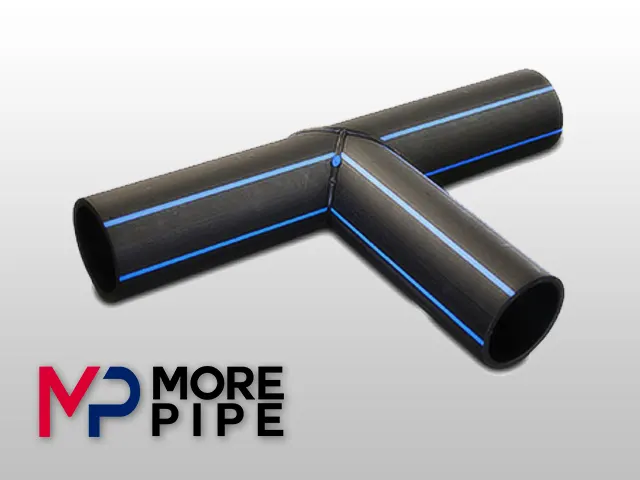

HDPE butt fusion tee
- SDR-7.3 from 1 1/4″ up to 18″
- SDR-9 from 1 1/4″ up to 20″
- SDR-11 from 1 1/4″ up to 24″
- SDR-13.3 from 1 1/2″ up to 24″
- SDR-17 from 2″ up to 18″

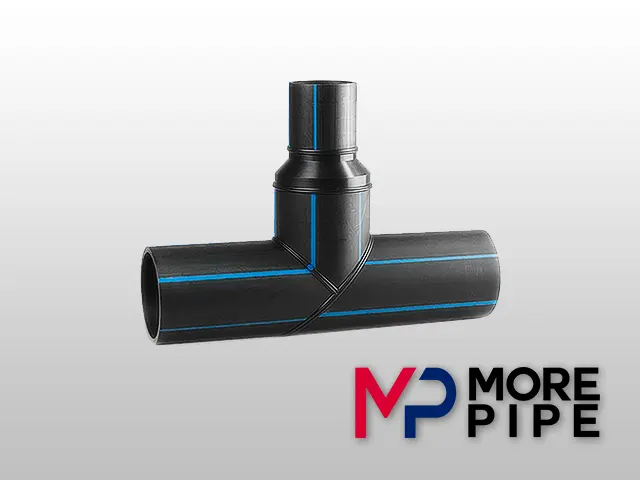

HDPE butt fusion reducing tee
Tee with metal outlet
Reduced tee with metal outlet
- SDR-7.3 from 1 1/2″ x 1 1/4″ up to 14″ x 12″
- SDR-9 from 1 1/2″ x 1 1/4″ up to 14″ x 12″
- SDR-11 from 1 1/2″ x 1 1/4″ up to 14″ x 12″
- SDR-13.5 from 2″ x 1 1/4″ up to 14″ x 12″
- SDR-17 from 1 1/2″ x 1 1/4″ up to 14″ x 12″

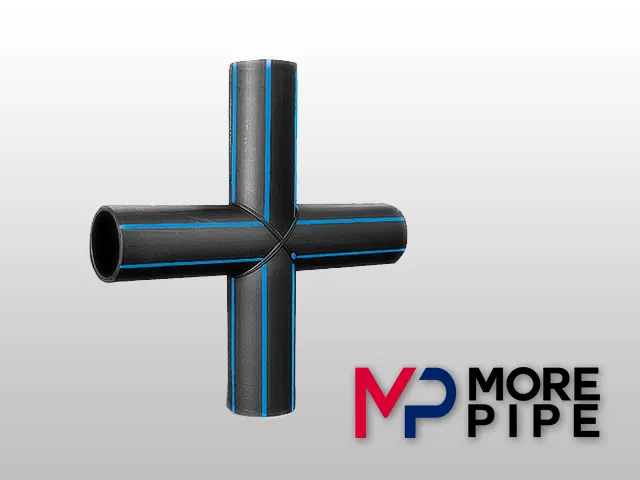

HDPE butt fusion cross
- SDR-7.3 from 1 1/4″ up to 18″
- SDR-9 from 1 1/4″ up to 20″
- SDR-11 from 1 1/4″ up to 24″
- SDR-13.5 from 1 1/2″ up to 24″
- SDR-17 from 2″ up to 18″

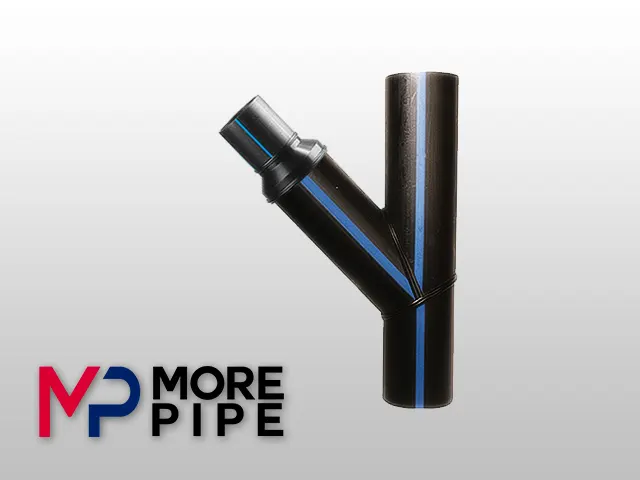

HDPE butt fusion reduced Y Tee
- SDR-7.3 from 2″ x 1 1/4″ up to 14″ x 12″
- SDR-9 from 2″ x 1 1/4″ up to 14″ x 12″
- SDR-11 from 2″ x 1 1/4″ up to 14″ x 12″
- SDR-13.5 from 2″ x 1 1/4″ up to 14″ x 12″
- SDR-17 from 2″ x 1 1/2″ up to 14″ x 12″
Butt fusion Y Tee
- SDR-7.3 from 1 1/4″ up to 18″
- SDR-9 from 1 1/4″ up to 20″
- SDR-11 from 1 1/4″ up to 24″
- SDR-13.5 from 1 1/2″ up to 24″
- SDR-17 from 2″ up to 18″
