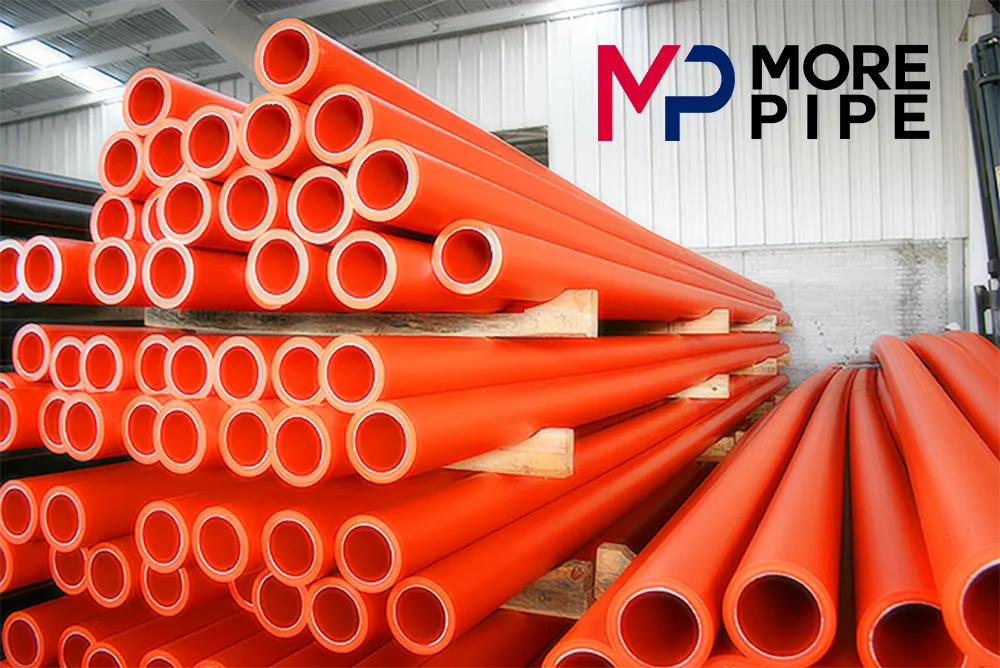

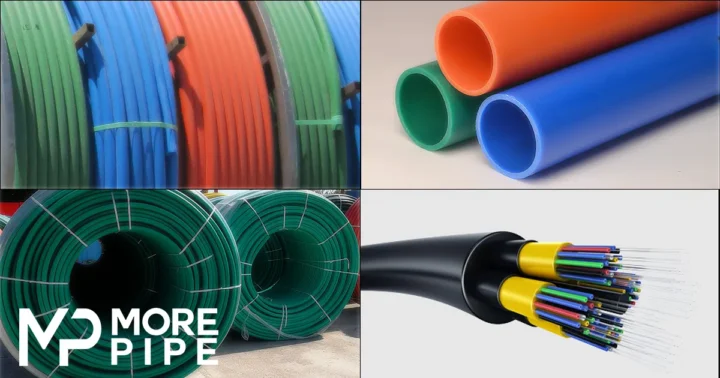

HDPE pipes for electrical and communication

The pipe is manufactured with Europe machinery of the last generation. To guarantee the best quality and production capacity. The pipes for CFE cover a wide range of dimensions with diameters from 1 ¼” to 12” external diameter, for various applications.

• Low voltage
• Medium voltage
• Hight voltage

Always satisfying the needs of the market and even special products and customized with the resin of high-density polyethylene 100% virgin, is a very flexible smooth wall and can be installed easily in areas of dimensions movement restrictions.

All data shaded in gray are the products that we have accredited on LAPEM (It has the Constance of the corresponding prototype)

CFE DF110-23f-2016

Polyethylene pipes high density for wiring systems underground

NRF-057-CFE

High-Density Polyethylene pipes for systems of underground wiring

ASTM D 3035

Standard Specification for Polyethylene (PE) plastic pipe (DR – PR) based on the control of the outside diameter.

ASTM D 2444

Standard Practice for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling Weight)

ASTM D 638

Standard Test Method for Tensile Properties of Plastics

Durability

The service life of the pipes once installed is 100 years old, under normal operation, and at an average temperature of 23°C (buried).

Resistance in difficult areas

Thanks to the properties of the pipes, these can be used on non-flat land because they are not fragile or rigid bends adjusting to the contour of natural terrain.

Flexibility

The great flexibility of the pipes makes it possible for the considerable decrease of accessories by directions changes, this feature allows pipes to flex to a radius of curvature of 20 to 40 times his diameter as well, can absorb the majority of impacts and movements that every pipe suffers during his useful life.

Lightness

As the pipes are made of light material (HDPE), this allows his easy handling and speed in the installation

Our machinery

We have 7 European extrusion lines, fully automatic recently acquired (less than 3 years), which already have the las technological advances to take maximum care o the properties of the resin and increase the pipe life. In Mexico, we have a greater production capacity of polyethylene, with experience in pipe manufacturing of more than 30 years

Type of union

Pipes when manufactured with polyethylene high density can be joined by mechanical elements, by thermos-fusion or electro-fusion guaranteeing a reliable, secure union and thus totally hermetic

Chemical resistance

Pipes are inert to a wide variety of chemicals because they are not affected by natural substances found in the subsoil; they are not degradable: they are not electrically conductive; do not rust or corrode.

Resistance to compression

Based on their strength and great flexibility, the pipes can be compressed without affecting their physical or mechanical properties, giving resistance to additional mechanics to the cables installed inside the pipe.

• High resistance to UV rays
• Minimum elongation percentage of 400%.
• Pre-lubricated inside and with a pull guide that facilitates and speeds up the wiring.
