HDPE Flange Adapters
HDPE flange adapters are used to connect HDPE pipes to other piping systems. They are designed to provide a transition from plain-end HDPE pipe (SDR 7 – SDR 26) to flanged piping system components. The sizes range from 2” to 63” IPS (Iron Pipe Size). The pressure rating meets or exceeds the performance capability of the pipe
HDPE Flange adapters IPS – 2” to 63”
HDPE-PE4710/PE100
CELL CLASS: PE445574C (ASTM D3350)
Requirements:
- AWWA C906 (4”-24”)
- ASTM D2513 (2”-24”)
- ASTM D3261 (2”-24”)
Dimensional Requirements:
- ASTM D3261 (28” and up)
- AWWA C906 (26” and up)
Certification:
- FM 200/250 where applicable
- NSF 61-G where applicable

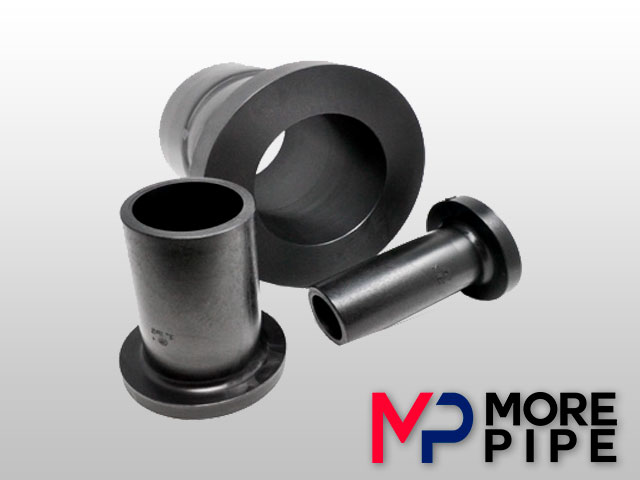

HDPE Flange Adapters – DIPS – 24″ to 48″
HDPE-PE4710/PE100
CELL CLASS: PE445574C (ASTM D3350)
Dimensional Requirements:
- ASTM D3261 (24” and up)
- AWWA C906 (24” and up)
Certification:
- NSF 61-G where applicable

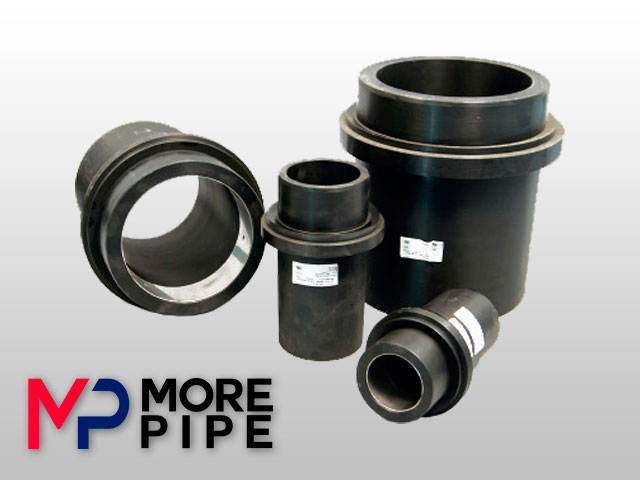

HDPE MJ Adapters IPS/DIPS 24″ to 48″
HDPE-PE4710/PE100
CELL CLASS: PE445574C (ASTM D3350)
Dimensional Requirements:
- ASTM D3261 (18” and up)
- AWWA C906 (18” and up)
Certification:
- NSF 61-G where applicable

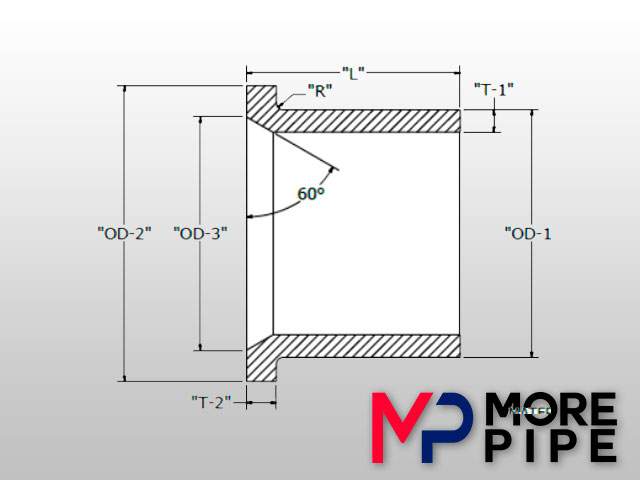

HDPE Beveled Flange Adapters – 2″ to 63″
HDPE-PE4710/PE100
CELL CLASS: PE445574C (ASTM D3350)
Requirements:
- AWWA C906 (4”-24”)
- ASTM D2513 (2”-24”)
- ASTMD3261 (2”-24”)
Dimensional Requirements:
- AWWA C906 (4”-24”)
- ASTM D2513 (2”-24”)
- ASTMD3261 (2”-24”)
Certification:
- ASTM D3261 (28” and up)
- AWWA C906 (26” and up)

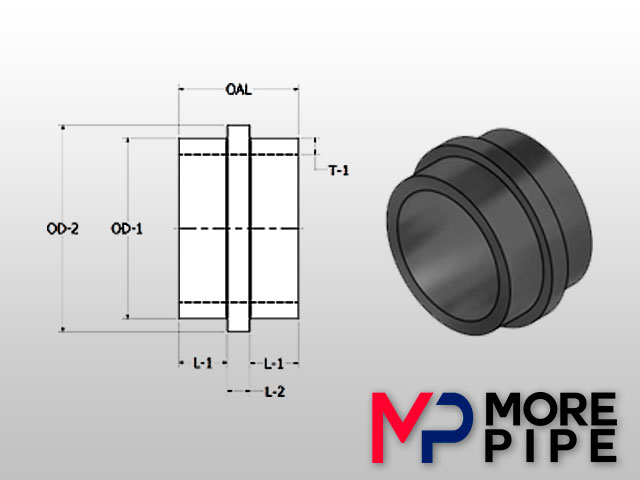

Wall Anchors – IPS/DIPS – 24″ to 63″
HDPE-PE4710/PE100
CELL CLASS: PE445574C (ASTM D3350)
Dimensional Requirements:
- AWWA C906 (24” and up)
Certification:
- NSF 61-G where applicable

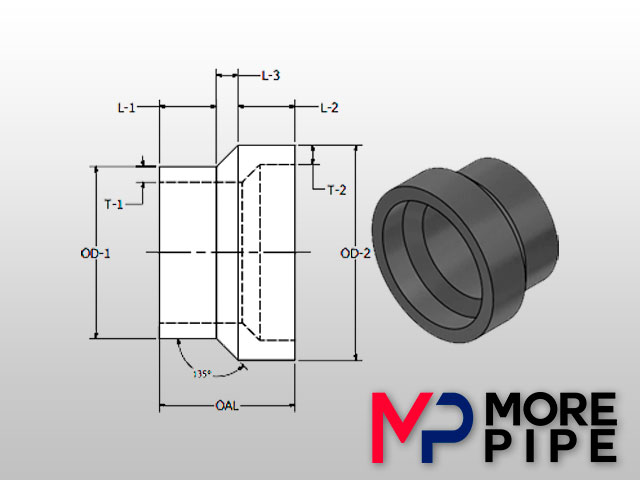

Concentric Reducers – IPS/DIPS 24″ to 54″
HDPE-PE4710/PE100
CELL CLASS: PE445574C (ASTM D3350)
Dimensional Requirements:
- AWWA C906 (24” and up)
Certification:
- NSF 61-G where applicable

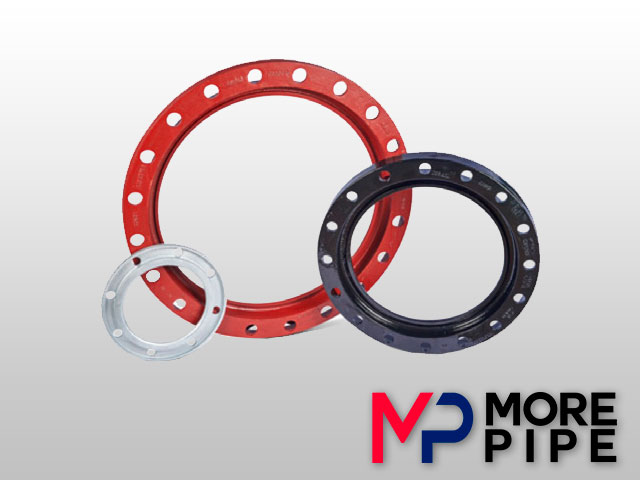

Ductile Iron Backing Rings – 1″ to 63″
Available in epoxy and galvanized
Material Designation:
- Ductile iron ASTM A536, 65/45/12
Requirements:
- Class 150 ANSI B16.5
- AWWA C207 Bolt Pattern
Certification:
- FM 200/250 where applicable
- NSF 61-G (non-wetted applications)

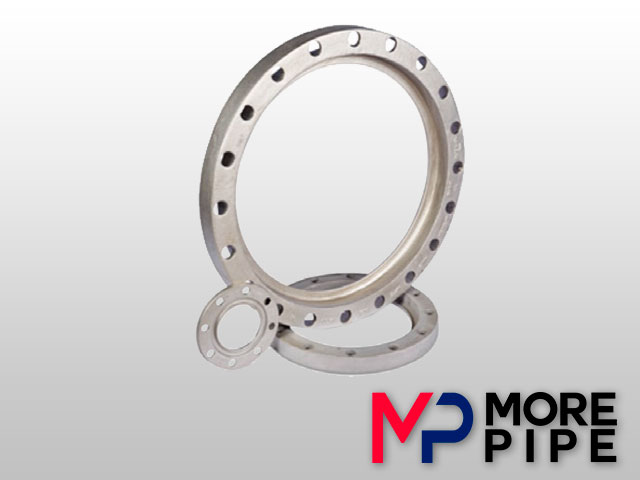

Stainless Steel Backing Rings – 1″ to 63″
Material Designation:
- Stainless Steel ASTM A351 CF8M (316) 70/30/30
Requirements:
- Class 150 ANSI B16.5
- AWWA C207 Bolt Pattern
Certification:
- FM 200/250 where applicable
- NSF 61-G (non-wetted applications)

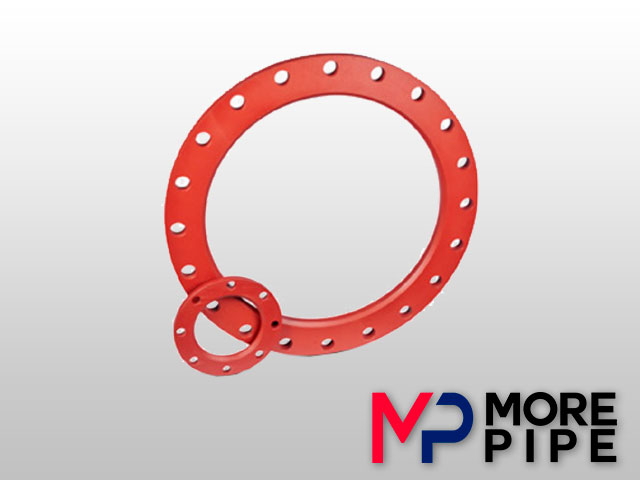

Carbon Steel Backing Rings – 1.5″ to 63″
Dimensional Requirements:
- A36 Plate Carbon Steel
Certification:
- Class 150 ANSI B16.5
- AWWA C207 Bolt Pattern

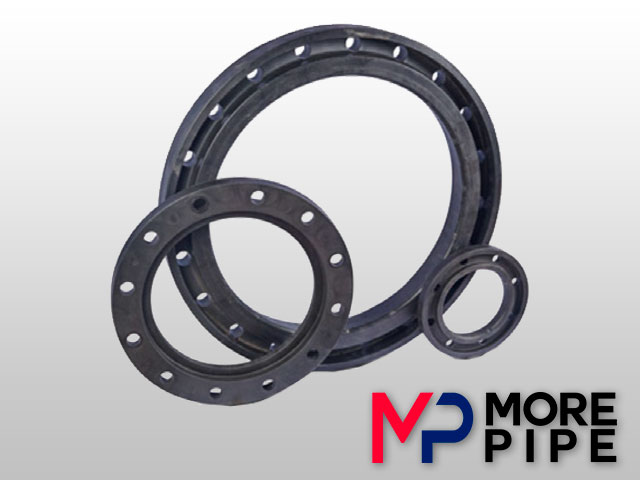

PPDI Backing Rings – 2″ to 36″
Material Designation:
- Ductile iron ASTM A536, 65/45/12 WITH Polypropylene Encapsulation
Requirements:
- Class 150 ANSI B16.5
- AWWA C207 Bolt Pattern
Certification:
- FM 200/250 where applicable to 30”
- NSF 61-G (non-wetted applications)
