HDPE Butt Fusion Fittings are manufactured from bimodal resin certified PE4710 or PE100 by the Plastics Pipe Institute (PPI),. It has superior mechanical properties such as hardness, resistance to tension, crushing, and abrasion. It is of high chemical resistance, non-toxic, and long service life.
Greater hermeticity; HDPE connections can be joined by butt fusion, a method by which a monolithic union is achieved that is more resistant than the 100% hermetic pipe itself.
Quality Control is tested in accordance with the applicable standards in the laboratory accredited by Mexican Accreditation Entity.

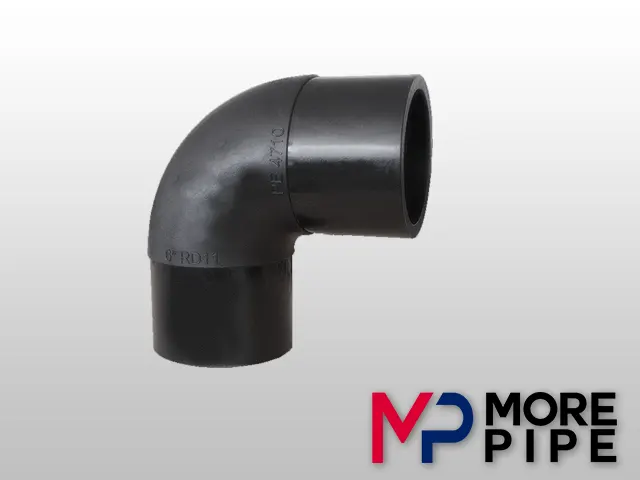

HDPE butt fusion injected 90° elbow
- SDR-9 from 3″ to 6″
- SDR-11 from 2″ to 8″

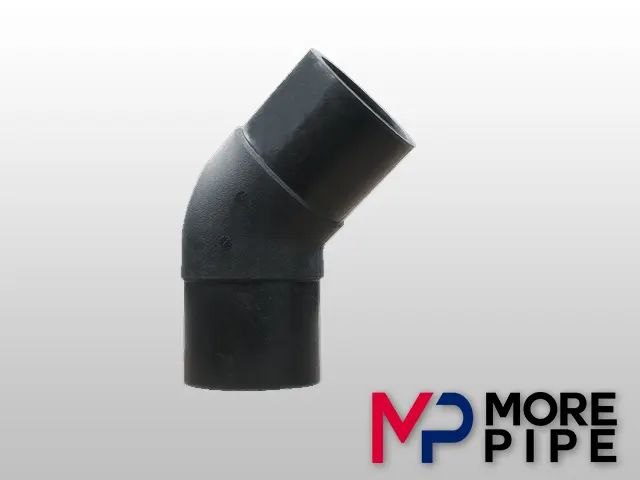

HDPE butt fusion injected 45° elbow
- SDR-11 from 2″ to 12″

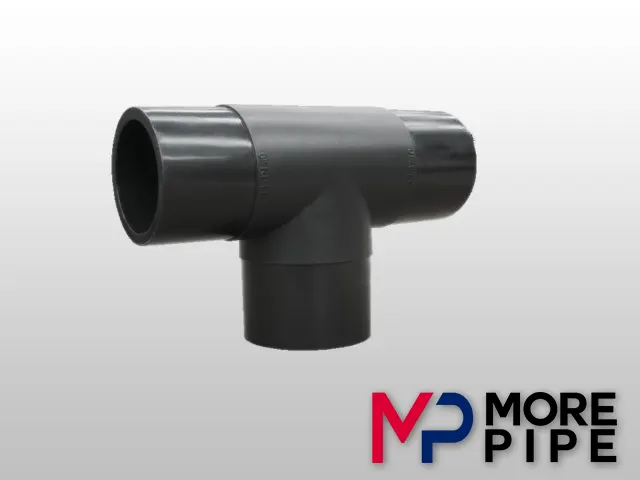

HDPE butt fusion injected 90° Tee
- SDR-9 from 3″ to 6″
- SDR-11 from 2″ to 8″

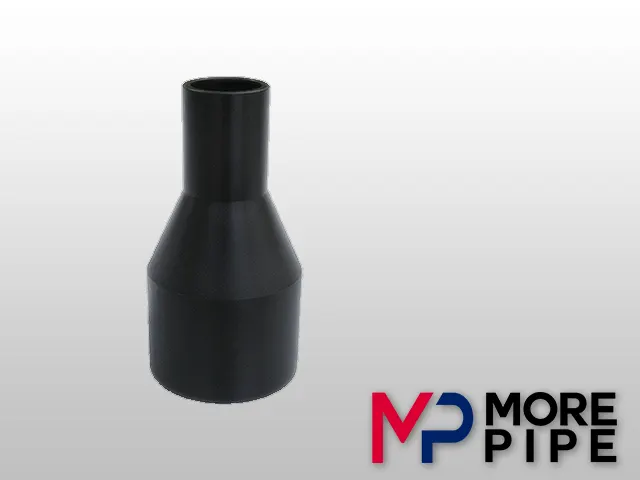

HDPE butt fusion injected reduced-bell
- SDR-7.3 from 1 1/2″ x 1″ to 12″ x 10″
- SDR-9 from 1 1/2″ x 1″ to 12″ x 10″
- SDR-11 from 1 1/2″ x 1″ to 12″ x 10″
- SDR-13.5 from 1 1/2″ x 1″ to 12″ x 10″
- SDR-17 from 2″ x 1 1/2″ to 12″ x 10″

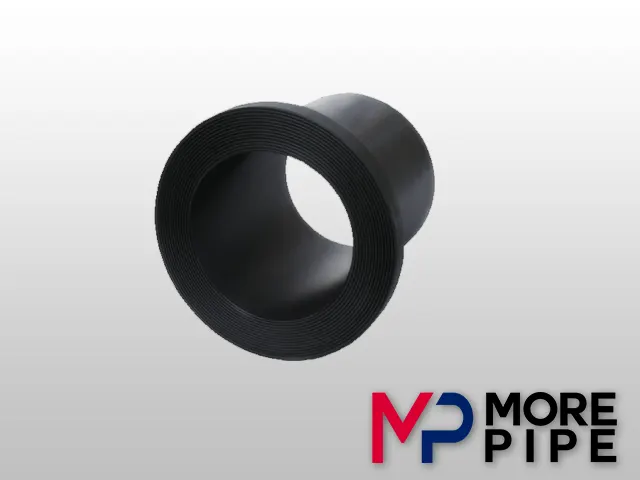

HDPE butt fusion injected Stub End
- SDR-7.3 from 1″ to 20″
- SDR-9 from 1″ to 16″
- SDR-11 from 1″ to 20″
- SDR-13.5 from 1″ to 16″
- SDR-17 from 2″ to 16″

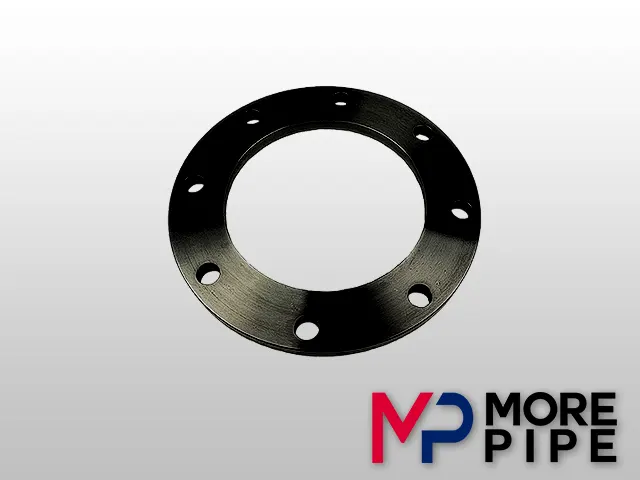

Backing ring (Carbo Steel)
- Up to 150 PSI from 1/2″ to 14″
- Up to 270 PSI from 1/2″ to 14″
